Railing-Post Adjustable PV Bracket (15–30° Tilt, No-Drill Installation for Balcony & Terrace)
OEM / Customization
Logo, packaging, cable length & plug standard (Schuko/Wieland), color options. Send your brand guide; we confirm artworks within 24 hours.
MOQ=5
Standard items from 5 sets/SKU; custom print from 100 sets. Mixed models on one pallet accepted.
Lead Time:
Samples 7–10 days; mass production 20–30 days after deposit & artwork approval. Rush orders on request.
Description
Overview

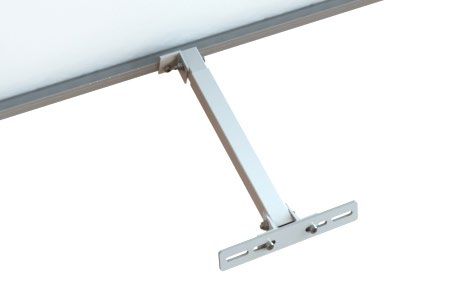

The A-1004 universal 3-way adjustable bracket is a versatile mounting solution for balcony, flat-surface, or wall installations. With a 30–43° tilt range and reinforced hinge design, it adapts to multiple orientations while keeping the module firmly supported. The frame is crafted from high-strength aluminum alloy with stainless-steel bolts, ensuring excellent corrosion resistance for long-term outdoor use.
Key Features

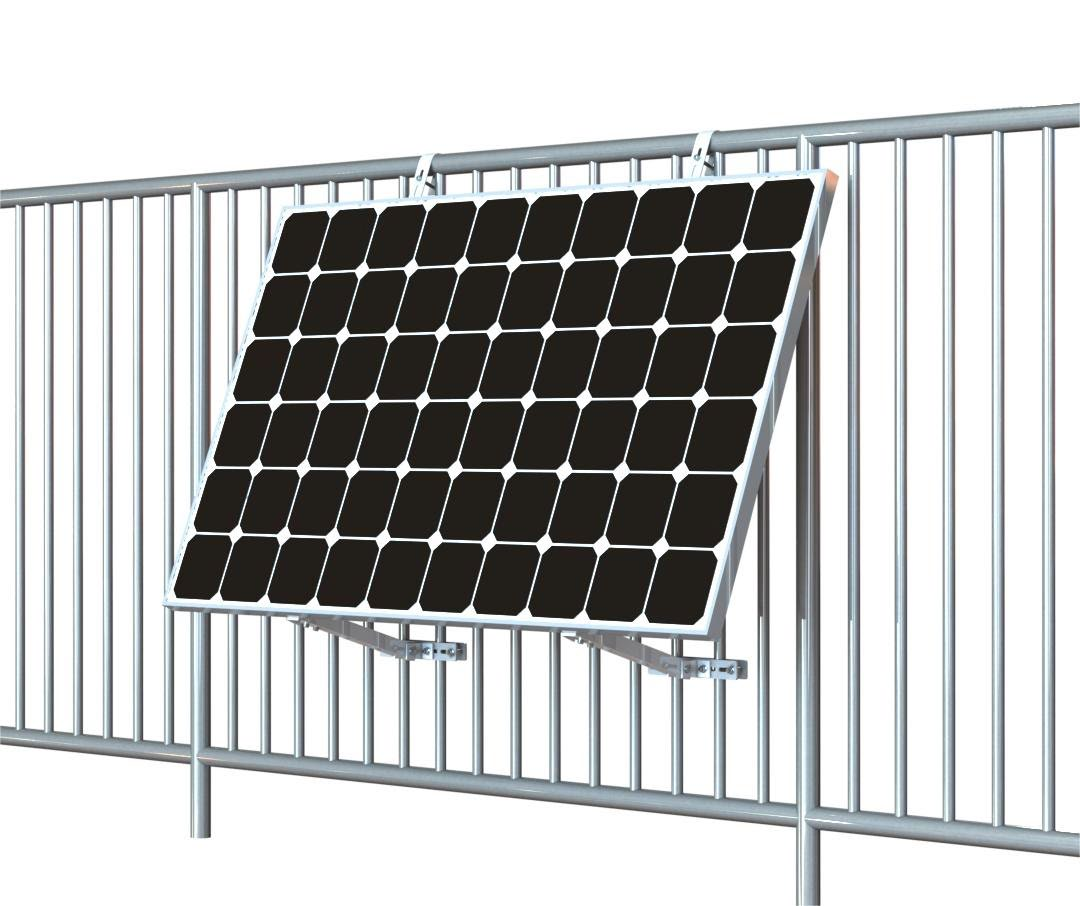

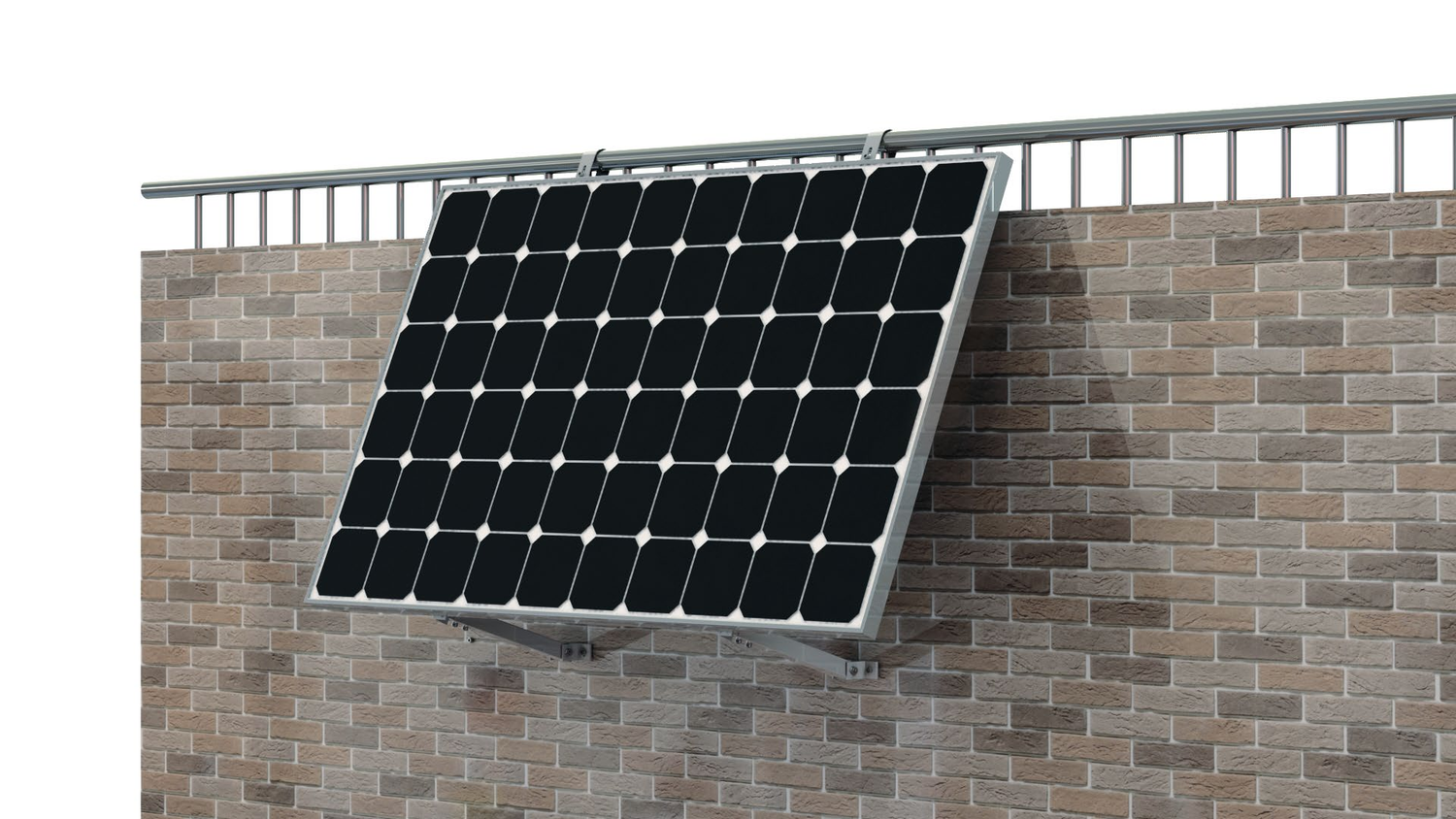

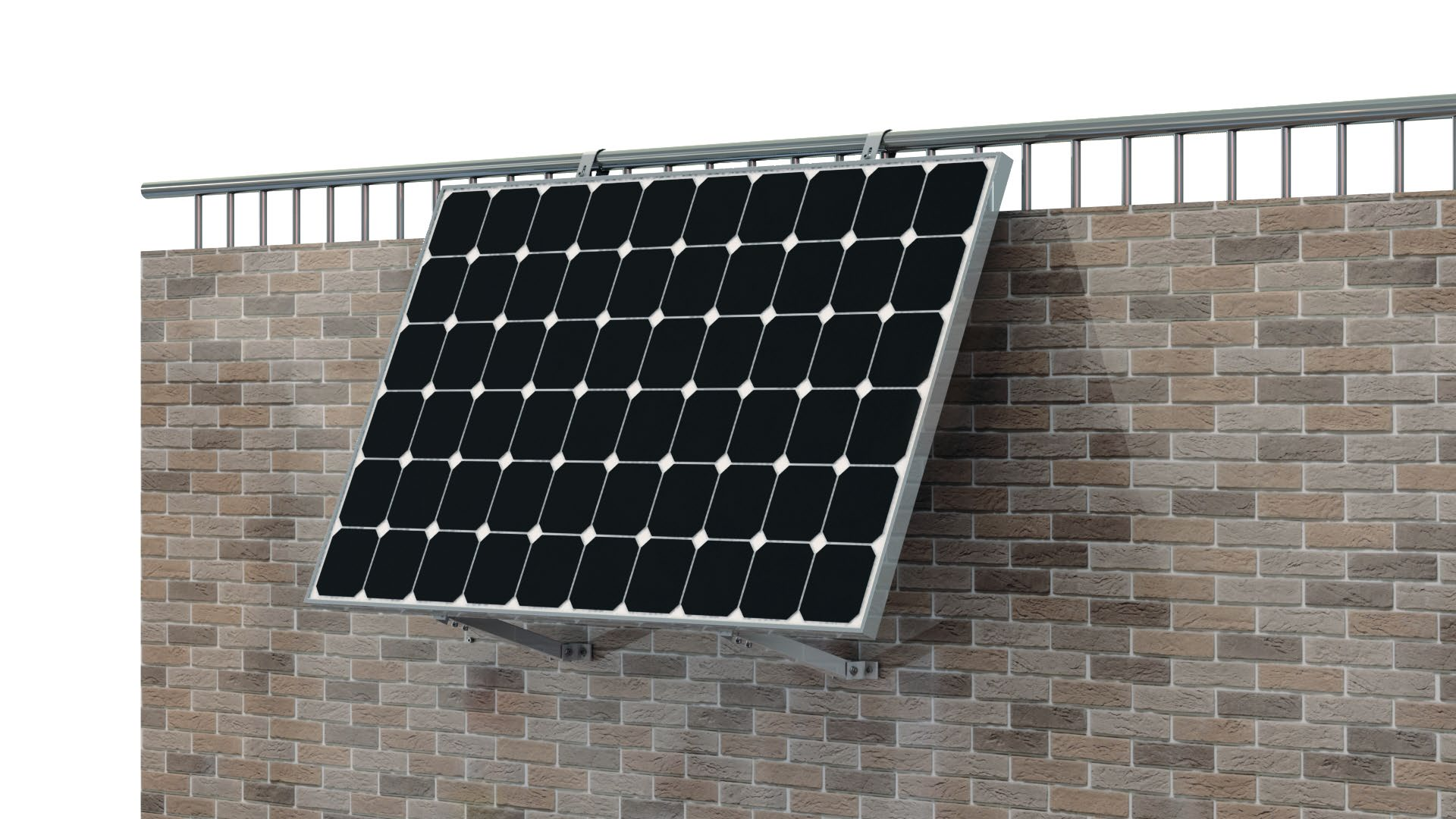

- 3-way installation — suitable for railing, floor, or wall mounting.
- Wide tilt range 30–43° — adjustable hinge plates with angle markers.
- Universal module fit — compatible with mainstream 30–45 mm thick PV modules.
- Heavy-duty design — reinforced frame, double-locking bolts, anti-corrosion anodizing.
- Pre-assembled delivery — saves assembly time and lowers installation cost.
- OEM support — color, labeling, and manual customization for distributors.
Specifications
| Mounting Type | Universal (balcony / floor / wall) |
| Tilt Range | 30–43° adjustable |
| Module Compatibility | 1400–2400 mm × 700–1300 mm × 30–45 mm |
| Material | High-strength aluminum alloy, stainless-steel fasteners |
| Surface Finish | Anodized silver or black |
| Load Capacity | 5400 Pa positive / 2400 Pa negative (reference) |
| Installation Time | ~20 minutes by 2 persons |
Package Contents
- Main adjustable frame × 1 set
- Clamps and bolts × 1 set
- Installation manual (EN / DE / FR / ZH)
- Optional anchor kit for wall mounting
Logistics & Trade Info
| Packing | Carton + master carton, export pallet |
| Lead Time | Sample 7–10 days; bulk 20–30 days |
| Trade Terms | EXW / FOB / CIF / DDP (EU) |
Customization Options
- Logo or color anodizing
- Module clamp size adjustment
- Packaging artwork & barcode
For OEM orders or container mix-loading, please share your target market and order quantity for a detailed quote.
Our support team is happy to help:info@innohelio.com
Aesthetic Balcony Solar — Power in Color
Win projects where appearance matters as much as yield. Our design-forward, color-matched balcony kits help you open premium façade and railing jobs, justify higher ASPs, and shorten homeowner decisions. Consistent look across lines, ready-to-use visuals, and clear selling stories make it easy for your team to pitch and close—without changing your current install workflow.
Product Details
Overview
The A-1004 universal 3-way adjustable bracket is a versatile mounting solution for balcony, flat-surface, or wall installations. With a 30–43° tilt range and reinforced hinge design, it adapts to multiple orientations while keeping the module firmly supported. The frame is crafted from high-strength aluminum alloy with stainless-steel bolts, ensuring excellent corrosion resistance for long-term outdoor use.
Key Features
- 3-way installation — suitable for railing, floor, or wall mounting.
- Wide tilt range 30–43° — adjustable hinge plates with angle markers.
- Universal module fit — compatible with mainstream 30–45 mm thick PV modules.
- Heavy-duty design — reinforced frame, double-locking bolts, anti-corrosion anodizing.
- Pre-assembled delivery — saves assembly time and lowers installation cost.
- OEM support — color, labeling, and manual customization for distributors.
Specifications
| Mounting Type | Universal (balcony / floor / wall) |
| Tilt Range | 30–43° adjustable |
| Module Compatibility | 1400–2400 mm × 700–1300 mm × 30–45 mm |
| Material | High-strength aluminum alloy, stainless-steel fasteners |
| Surface Finish | Anodized silver or black |
| Load Capacity | 5400 Pa positive / 2400 Pa negative (reference) |
| Installation Time | ~20 minutes by 2 persons |

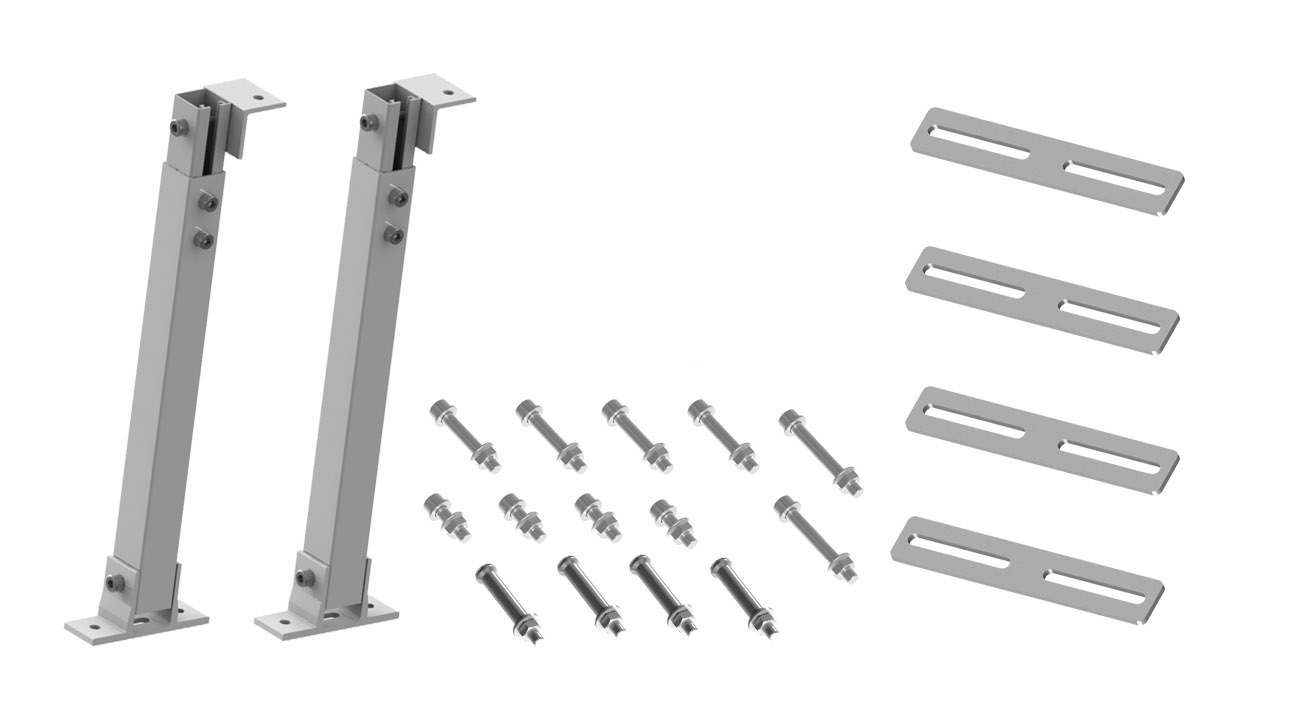

Package Contents
- Main adjustable frame × 1 set
- Clamps and bolts × 1 set
- Installation manual (EN / DE / FR / ZH)
- Optional anchor kit for wall mounting
Logistics & Trade Info
| Packing | Carton + master carton, export pallet |
| Lead Time | Sample 7–10 days; bulk 20–30 days |
| Trade Terms | EXW / FOB / CIF / DDP (EU) |
Customization Options
- Logo or color anodizing
- Module clamp size adjustment
- Packaging artwork & barcode
For OEM orders or container mix-loading, please share your target market and order quantity for a detailed quote.
ALLGEMEINE FRAGEN
Will the color reduce solar efficiency?
Our spectrally selective coating is engineered to pass the wavelengths silicon cells convert most efficiently, so the impact on output is minimal under standard test conditions. Real-world yield is driven more by orientation, tilt, and shading than by the color layer. Third-party test data and samples are available on request.
How long is the payback period?
Payback depends on your electricity tariff, installation method (balcony/roof), system size, and local irradiance. Email us at iinfo@innohelio.com with your location, roof/balcony details, and desired power, and we’ll run a tailored ROI calculation for you.
Do you support custom requirements?
Absolutely. We can customize color and gloss, module size, mounting accessories, plug and cable length, labels/packaging, and branding. Our engineering team provides drawings for approval, pre-production samples, and clear MOQs/lead times per option.
