Colored PV Roof Tiles — Overlapping Type 3.0 (Glass-Glass)
OEM / Customization
Logo, packaging, cable length & plug standard (Schuko/Wieland), color options. Send your brand guide; we confirm artworks within 24 hours.
MOQ=5
Standard items from 5 sets/SKU; custom print from 100 sets. Mixed models on one pallet accepted.
Lead Time:
Samples 7–10 days; mass production 20–30 days after deposit & artwork approval. Rush orders on request.
Description

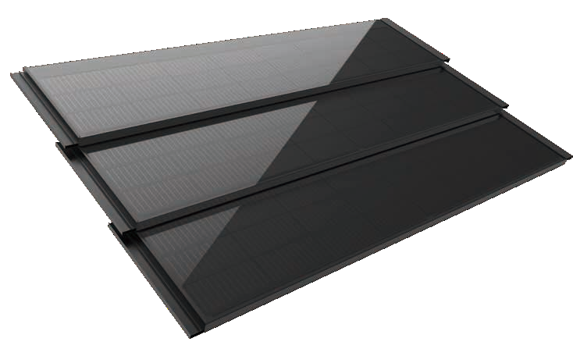

Aesthetic PV Roof Tiles (Overlapping Type 3.0) for Residential Rooftops
These colored PV roof tiles adopt an overlapping (stacked) design with monocrystalline glass-glass construction, delivering building-grade reliability and long service life. With 5400 Pa positive / 2400 Pa negative mechanical load ratings, harsh-weather durability, and a target lifetime of up to 30 years, they provide stable power generation while preserving architectural aesthetics. Manufactured in an intelligent, closed-loop facility in line with major international and domestic standards, the tiles support custom colors and multiple cell technologies (TOPCon / HJT / BC) to match diverse roof styles and performance needs.
Key Applications
- Residential pitched-roof solar with color-matched, uniform appearance
- Retrofit projects requiring aesthetic integration and weatherproof overlaps
- Partial south-facing roof zones to balance façade symmetry and yield
- B2B distribution with long warranties and certification-ready design
Core Features
- Building-grade safety & reliability: 5400 Pa positive / 2400 Pa negative load; harsh-weather resistance; long-term durability (up to 30 years)
- High yield PV attributes: monocrystalline glass-glass modules; produced in line with international and domestic standards
- Smart O&M & compatibility: 24/7 monitoring readiness, cleaning-friendly design, roof-integrated layout, lightweight operation, architectural aesthetics
- Advanced product technology: improved low-light generation, anti-soiling geometry, shading-tolerant layout
- Color customization: terracotta, slate black, light blue; RAL matching available; multiple cell technologies (TOPCon / HJT / BC)
Technical Specifications
| Cell | 210 mm monocrystalline |
|---|---|
| Structure | Glass-glass |
| Frame | Black aluminum frame |
| Tile Size | 1817 × 420 × 29 mm |
| Weight | 9.6 kg |
| Cables | Positive 700 mm / Negative 700 mm |
| Connector | PV-SY02, IP68 |
| Junction Box & Diodes | IP67, 1000 VDC, two bypass diodes |
| NMOT | 44 °C ± 2 °C |
| Operating Temperature | −40 °C to +85 °C |
| Max System Voltage | 1000 VDC |
| Max Series Fuse Rating | 30 A |
| Reverse Current Limit | 30 A |
| Temperature Coefficients | Voc −0.25%/°C; Isc +0.04%/°C; Pmax −0.34%/°C |
Electrical Parameters (STC)
| Model | Max Power (Pmax) | Open-Circuit Voltage (Voc) | Short-Circuit Current (Isc) | Voltage at Pmax (Vmpp) | Current at Pmax (Impp) |
|---|---|---|---|---|---|
| INM24-8-18AMBD | 118 W | 8.85 V | 18.48 A | 6.85 V | 17.23 A |
| INM24-8-121AMBD | 121 W | 8.95 V | 18.57 A | 6.95 V | 17.41 A |
Warranty & Compliance
Product warranty up to 15 years; target service life around 30 years. Designed with reference to major international and domestic PV and building standards; manufactured in an intelligent, closed-loop facility.
Our support team is happy to help: +公司手机注册的whatapp or directly in the chat.
Product Details
Aesthetic PV Roof Tiles (Overlapping Type 3.0) for Residential Rooftops
These colored PV roof tiles adopt an overlapping (stacked) design with monocrystalline glass-glass construction, delivering building-grade reliability and long service life. With 5400 Pa positive / 2400 Pa negative mechanical load ratings, harsh-weather durability, and a target lifetime of up to 30 years, they provide stable power generation while preserving architectural aesthetics. Manufactured in an intelligent, closed-loop facility in line with major international and domestic standards, the tiles support custom colors and multiple cell technologies (TOPCon / HJT / BC) to match diverse roof styles and performance needs.
Key Applications
- Residential pitched-roof solar with color-matched, uniform appearance
- Retrofit projects requiring aesthetic integration and weatherproof overlaps
- Partial south-facing roof zones to balance façade symmetry and yield
- B2B distribution with long warranties and certification-ready design
Core Features
- Building-grade safety & reliability: 5400 Pa positive / 2400 Pa negative load; harsh-weather resistance; long-term durability (up to 30 years)
- High yield PV attributes: monocrystalline glass-glass modules; produced in line with international and domestic standards
- Smart O&M & compatibility: 24/7 monitoring readiness, cleaning-friendly design, roof-integrated layout, lightweight operation, architectural aesthetics
- Advanced product technology: improved low-light generation, anti-soiling geometry, shading-tolerant layout
- Color customization: terracotta, slate black, light blue; RAL matching available; multiple cell technologies (TOPCon / HJT / BC)
Technical Specifications
| Cell | 210 mm monocrystalline |
|---|---|
| Structure | Glass-glass |
| Frame | Black aluminum frame |
| Tile Size | 1817 × 420 × 29 mm |
| Weight | 9.6 kg |
| Cables | Positive 700 mm / Negative 700 mm |
| Connector | PV-SY02, IP68 |
| Junction Box & Diodes | IP67, 1000 VDC, two bypass diodes |
| NMOT | 44 °C ± 2 °C |
| Operating Temperature | −40 °C to +85 °C |
| Max System Voltage | 1000 VDC |
| Max Series Fuse Rating | 30 A |
| Reverse Current Limit | 30 A |
| Temperature Coefficients | Voc −0.25%/°C; Isc +0.04%/°C; Pmax −0.34%/°C |
Electrical Parameters (STC)
| Model | Max Power (Pmax) | Open-Circuit Voltage (Voc) | Short-Circuit Current (Isc) | Voltage at Pmax (Vmpp) | Current at Pmax (Impp) |
|---|---|---|---|---|---|
| INM24-8-18AMBD | 118 W | 8.85 V | 18.48 A | 6.85 V | 17.23 A |
| INM24-8-121AMBD | 121 W | 8.95 V | 18.57 A | 6.95 V | 17.41 A |
Warranty & Compliance
Product warranty up to 15 years; target service life around 30 years. Designed with reference to major international and domestic PV and building standards; manufactured in an intelligent, closed-loop facility.
ALLGEMEINE FRAGEN
Will the color reduce solar efficiency?
Our spectrally selective coating is engineered to pass the wavelengths silicon cells convert most efficiently, so the impact on output is minimal under standard test conditions. Real-world yield is driven more by orientation, tilt, and shading than by the color layer. Third-party test data and samples are available on request.
How long is the payback period?
Payback depends on your electricity tariff, installation method (balcony/roof), system size, and local irradiance. Email us at iinfo@innohelio.com with your location, roof/balcony details, and desired power, and we’ll run a tailored ROI calculation for you.
Do you support custom requirements?
Absolutely. We can customize color and gloss, module size, mounting accessories, plug and cable length, labels/packaging, and branding. Our engineering team provides drawings for approval, pre-production samples, and clear MOQs/lead times per option.
