Railing-Mount Adjustable Balcony PV Bracket (18–36° Tilt, AL6005-T5 & SUS304, Pre-assembled)
OEM / Customization
Logo, packaging, cable length & plug standard (Schuko/Wieland), color options. Send your brand guide; we confirm artworks within 24 hours.
MOQ=5
Standard items from 5 sets/SKU; custom print from 100 sets. Mixed models on one pallet accepted.
Lead Time:
Samples 7–10 days; mass production 20–30 days after deposit & artwork approval. Rush orders on request.
Description
Overview

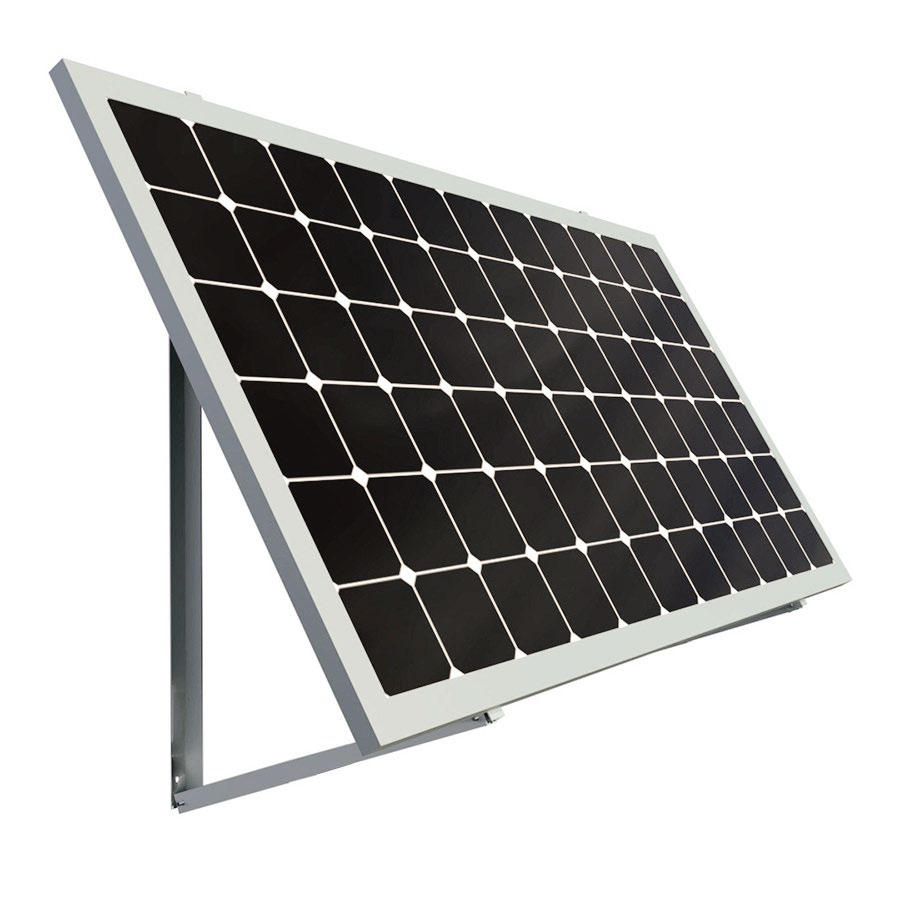

The A-1001 is a railing-mount adjustable bracket designed for balcony PV kits. With quick hook-on clamps and a robust triangle frame, it enables 18–36° tilt to optimize yield across seasons. Engineered in AL6005-T5 with SUS304 fasteners and an anodized finish, the system balances strength, corrosion resistance, and ease of installation for B2B distributors and project buyers.
Key Features

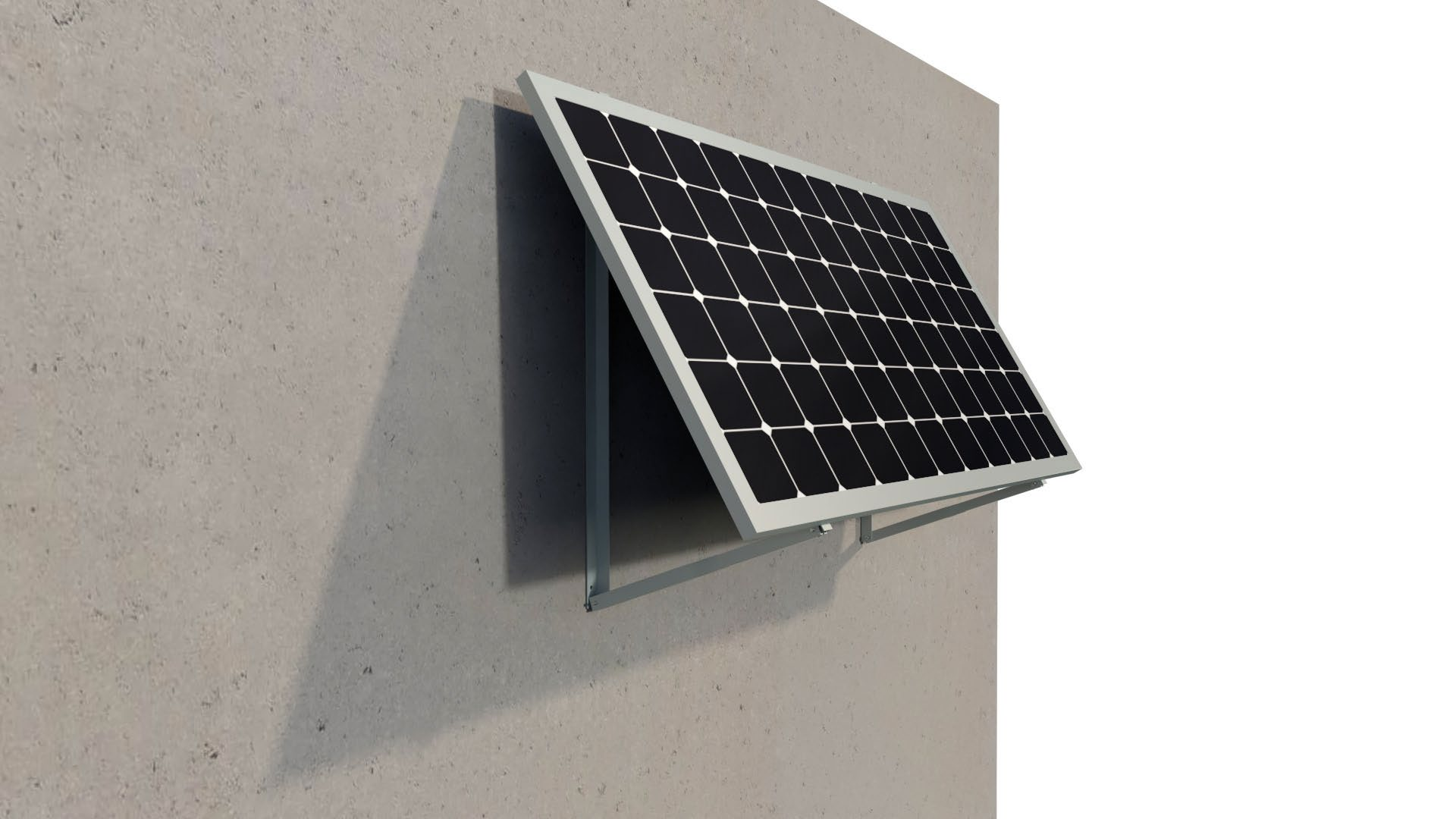

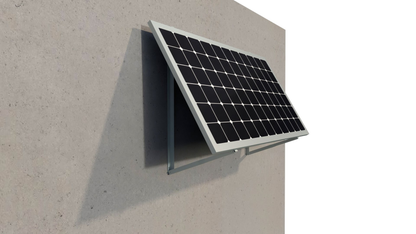

- Railing-mount, no-drill option: hook-on clamps minimize balcony intervention; expansion-bolt kit available for wall/flat mounting.

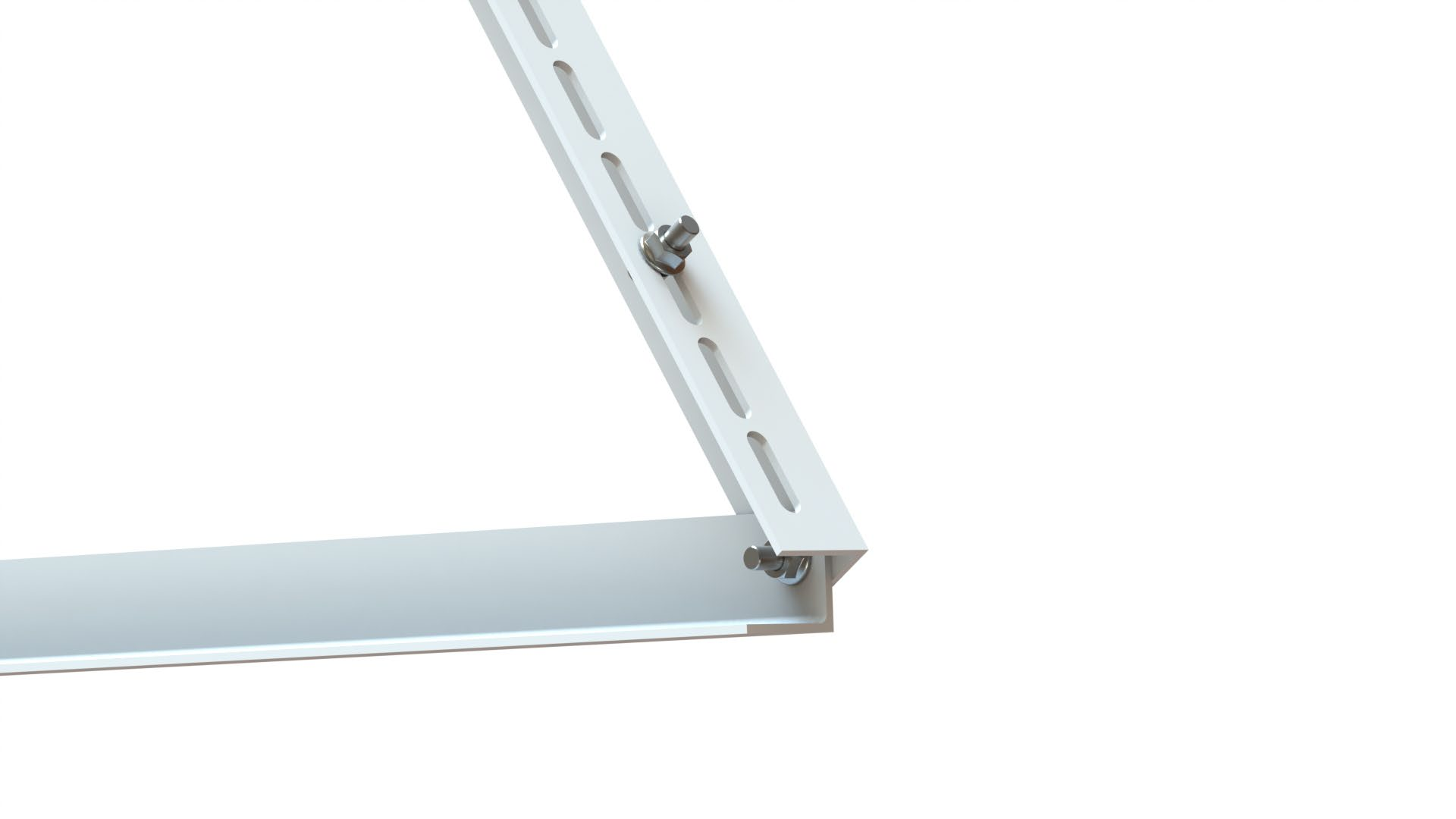

- Adjustable tilt 18–36°: lockable angles for spring/summer/autumn optimization.
- Universal module fit: supports mainstream mono PERC/TopCon modules (length 1400–2400 mm, width 700–1200 mm, thickness 30–35 mm).
- Fast deployment: pre-assembled subframes, numbered parts, and illustrated guide reduce on-site labor.
- Durable: AL6005-T5 structure + SUS304 fasteners, anodized surface for outdoor corrosion resistance.
- B2B-ready: white-label packaging, custom rail/clamp color, multi-language manuals, carton label with your SKU/GTIN.
Specifications
| Mounting Type | Railing mount (hook-on); optional expansion bolts for wall/flat fix |
| Tilt Range | 18–36° (multi-position locking) |
| Module Compatibility | L 1400–2400 mm × W 700–1200 mm × T 30–35 mm (1× module) |
| Materials | AL6005-T5 (anodized); SUS304 fasteners |
| Finish | Anodized silver (custom black on request) |
| Load Design | Static calculation report on request (wind/snow region specific) |
| Safety | Rounded edges, anti-slip toothed tilt plates, redundant locking |
| Assembly | Pre-assembled subframe + quick clamps; 1–2 people, 15–25 min typical |
Included in the Box

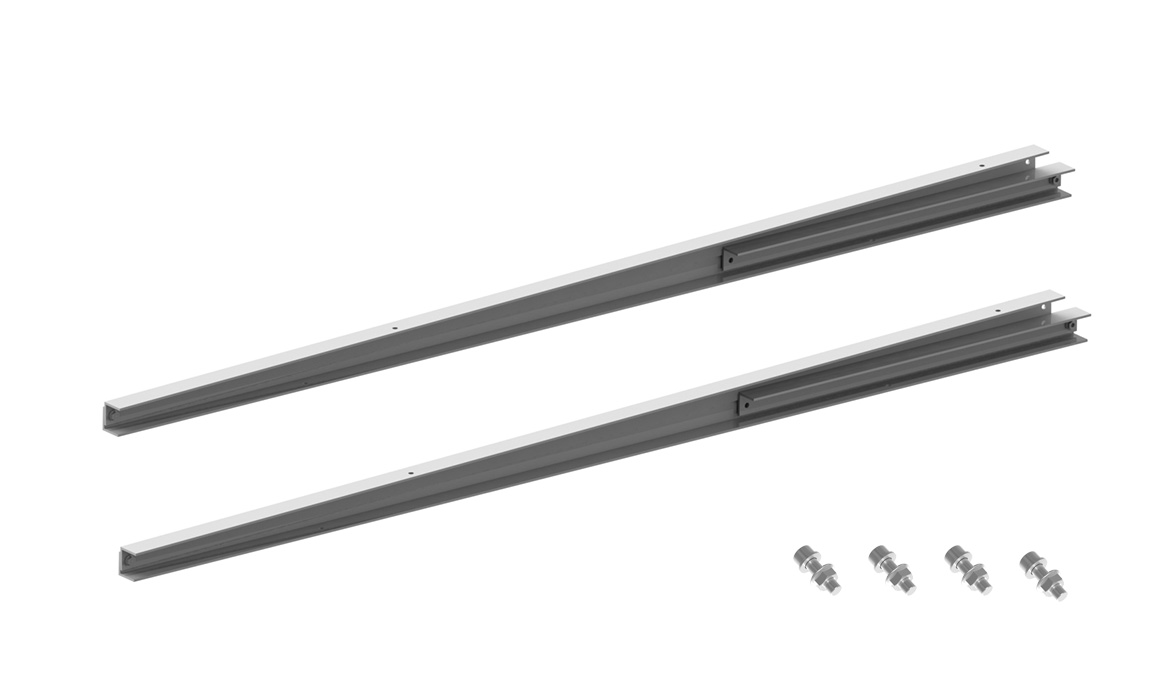

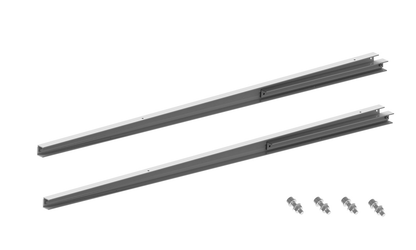

- Triangle side frames ×2, cross rails ×2
- Railing hook clamps ×2（with pads）
- Mid/End clamps set for 30–35 mm module thickness
- Fasteners (SUS304), angle plates, installation manual
- Optional: expansion bolt kit for wall/flat mounting
Packaging & Logistics
| Packing | Retail carton (white-label) + master carton; corner/film protected |
| Palletizing | Standard export pallets; mixed SKUs available |
| Lead Time | Samples 7–10 days; bulk 20–30 days (seasonal) |
| Trade Terms | EXW / FOB / CIF / DDP (EU) |
| Docs | COC/HS-code, packing list, commercial invoice; static calc on request |
Customization (OEM/ODM)
- Color: anodized black; clamp pads for special railings
- Manual: EN/DE/FR/ES/ZH multi-language
- Carton: logo, GTIN/ITF-14, handling icons
- Compatibility: end/mid-clamp sets for 28–40 mm thickness range
Notes
- Verify railing strength and local wind/snow conditions before installation.
- Use supplied anti-loosening washers and torque per manual.
- Inverter/grid compliance (e.g., VDE-AR-N 4105) concerns the inverter, not the bracket.
For distributor pricing, white-label packaging, and project BOM pairing (modules, microinverters, cables), leave your email and target market.
Our support team is happy to help:info@innohelio.com
Aesthetic Balcony Solar — Power in Color
Win projects where appearance matters as much as yield. Our design-forward, color-matched balcony kits help you open premium façade and railing jobs, justify higher ASPs, and shorten homeowner decisions. Consistent look across lines, ready-to-use visuals, and clear selling stories make it easy for your team to pitch and close—without changing your current install workflow.
Product Details
Overview
The A-1001 is a railing-mount adjustable bracket designed for balcony PV kits. With quick hook-on clamps and a robust triangle frame, it enables 18–36° tilt to optimize yield across seasons. Engineered in AL6005-T5 with SUS304 fasteners and an anodized finish, the system balances strength, corrosion resistance, and ease of installation for B2B distributors and project buyers.
Key Features
- Railing-mount, no-drill option: hook-on clamps minimize balcony intervention; expansion-bolt kit available for wall/flat mounting.
- Adjustable tilt 18–36°: lockable angles for spring/summer/autumn optimization.
- Universal module fit: supports mainstream mono PERC/TopCon modules (length 1400–2400 mm, width 700–1200 mm, thickness 30–35 mm).
- Fast deployment: pre-assembled subframes, numbered parts, and illustrated guide reduce on-site labor.
- Durable: AL6005-T5 structure + SUS304 fasteners, anodized surface for outdoor corrosion resistance.
- B2B-ready: white-label packaging, custom rail/clamp color, multi-language manuals, carton label with your SKU/GTIN.
Specifications
| Mounting Type | Railing mount (hook-on); optional expansion bolts for wall/flat fix |
| Tilt Range | 18–36° (multi-position locking) |
| Module Compatibility | L 1400–2400 mm × W 700–1200 mm × T 30–35 mm (1× module) |
| Materials | AL6005-T5 (anodized); SUS304 fasteners |
| Finish | Anodized silver (custom black on request) |
| Load Design | Static calculation report on request (wind/snow region specific) |
| Safety | Rounded edges, anti-slip toothed tilt plates, redundant locking |
| Assembly | Pre-assembled subframe + quick clamps; 1–2 people, 15–25 min typical |
Included in the Box
- Triangle side frames ×2, cross rails ×2
- Railing hook clamps ×2（with pads）
- Mid/End clamps set for 30–35 mm module thickness
- Fasteners (SUS304), angle plates, installation manual
- Optional: expansion bolt kit for wall/flat mounting
Packaging & Logistics
| Packing | Retail carton (white-label) + master carton; corner/film protected |
| Palletizing | Standard export pallets; mixed SKUs available |
| Lead Time | Samples 7–10 days; bulk 20–30 days (seasonal) |
| Trade Terms | EXW / FOB / CIF / DDP (EU) |
| Docs | COC/HS-code, packing list, commercial invoice; static calc on request |
Customization (OEM/ODM)
- Color: anodized black; clamp pads for special railings
- Manual: EN/DE/FR/ES/ZH multi-language
- Carton: logo, GTIN/ITF-14, handling icons
- Compatibility: end/mid-clamp sets for 28–40 mm thickness range
Notes
- Verify railing strength and local wind/snow conditions before installation.
- Use supplied anti-loosening washers and torque per manual.
- Inverter/grid compliance (e.g., VDE-AR-N 4105) concerns the inverter, not the bracket.
For distributor pricing, white-label packaging, and project BOM pairing (modules, microinverters, cables), leave your email and target market.
